Controlling the Geometry of an HTML Element

By Jochen Voss, last updated 2011-08-31

This page discusses how the get and set the size of an element in an HTML page. Some general information about how to use CSS and JavaScript in an HTML page can be found on my page about HTML5 apps.

Introduction

The geometry of most HTML elements is controlled by the CSS Box Model. Elements are assumed to be rectangular, being surrounded by some (transparent) margin and possibly a border. For container elements, there is also an inner margin, called padding, which keeps child elements at a certain distance from the container boundaries.

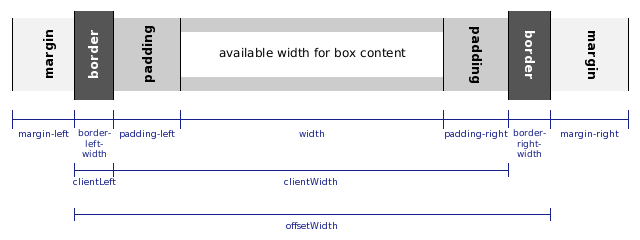

Figure 1. Illustration of the (horizontal) margin, border-width and padding in the CSS box model. The corresponding vertical quantities are arranged analogously.

The relevant quantites, from the outside in, are

The margin width. The margin is transparent, so visually it will appear as part of the surrounding element. Vertical margins of adjacent elements may overlap, see the section about collapsing margins in the CSS specification for details.
The element border, if present, this will form the visual outline of the element. Its width is added to the CSS width of the element.
The padding size, separating the child elements from the border. Again, its width is added to the CSS width of the element.

Reading Geometry Parameters

There are two ways to read out the various parameters governing the geometry of an HTML element: Some of the parameters are exposed as properties of the JavaScript objects representing the elements. Alternatively, the parameters can be accessed by reading the computed CSS style information.

Some care is needed, since the returned values are not always identical to the values given in the style sheet. For example, sometimes browsers seem to round border widths to an integer number of screen pixels, and with non-standard zoom levels the returned (CSS pixel) values are then fractional values, slightly different from what was given in the style sheet.

Using Object Properties

the W3C CSSOM extensions to the Element interface and to the HTMLElement interface.

The top part of table 1 lists the available parameters. The visual height of an object can, for example, be computed using code like the following:

var box = document.getElementById("mybox");
var clientWidth = box.clientWidth;

For the yellow box from the example in figure 2 the result is clientWidth = 12 + 282 + 6 = 300. This method allows to obtain the regions delimited by the inner and outer edges of the element border. It does not offer any information about margins or padding.

Figure 2. The test element we use for the example in the text. The yellow rectangle is a DIV element with the following CSS style applied to it

width: 282px;
border: solid black;
background: yellow;
margin: 1px 4px 7px 10px;
border-width: 2px 5px 8px 11px;
padding: 3px 6px 9px 12px;

Contained in this element is a green square, implemented as a DIV of size 100×100 and without any margin, borders or padding.

Using the Computed CSS Style

the CSS Box Model specification

The computed CSS information can be obtained using the window.getComputedStyle function, using code like the following. The top part of table 1 lists the available parameters. Since the returned values are strings of the form 12px, we need to convert the return values to numbers. This can be done using the parseFloat function (which ignores the trailing px).

var box = document.getElementById("mybox");
var style = window.getComputedStyle(box,null);
var pl = parseFloat(style.getPropertyValue("padding-left"));

		Google Chrome 5.0.375.55 MacOS X	Firefox 3.6.3 MacOS X
object properties	offsetWidth	316	316
	scrollWidth	300	316
	clientWidth	300	300
	offsetHeight	122	122
	scrollHeight	112	122
	clientHeight	112	112
	clientTop	2	2
	clientLeft	11	11
computed CSS style	width	282px	282px
	height	100px	100px
	margin-top	1px	1px
	border-top-width	2px	2px
	padding-top	3px	3px
	margin-right	*	4px
	border-right-width	5px	5px
	padding-right	6px	6px
	margin-bottom	7px	7px
	border-bottom-width	8px	8px
	padding-bottom	9px	9px
	margin-left	10px	10px
	border-left-width	11px	11px
	padding-left	12px	12px

Table 1. The dimensions of the yellow rectangle in figure 2 as obtained by different browsers. The given value are for the default zoom-level.

Changing Geometry Parameters

Since the DOM object properties listed in the top part of table 1 are read-only, object geometry can only be changed by changing the CSS style information of an object directly.

Example 1. Code like the following can be used to make an element big enough to contain a child element of a given width.

var childWidth = 100;
var box = document.getElementById("mybox");
box.style.paddingLeft = childWidth+"px";

Example 2. The following code changes the element size so that it will take up a given width in the parent container.

var parentWidth = 100;
var box = document.getElementById("mybox");
var style = window.getComputedStyle(box,null);
var ml = parseFloat(style.getPropertyValue("margin-left"));
var bl = parseFloat(style.getPropertyValue("border-left-width"));
var pl = parseFloat(style.getPropertyValue("padding-left"));
var pr = parseFloat(style.getPropertyValue("padding-rigth"));
var br = parseFloat(style.getPropertyValue("border-rigth-width"));
var mr = parseFloat(style.getPropertyValue("margin-rigth"));
box.style.paddingLeft = (parentWidth-ml-bl-pl-pr-br-mr)+"px";

Example

This section gives an extensive example, illustrating the techniques explained on this page. Try clicking the download button at the bottom of the listing to experiment with it.

<!DOCTYPE html>
<html>
  <head>
  <title>Element Geometry Test</title>
  <meta charset="utf-8">

  <style type="text/css">
  DIV {
    margin: 8px 0px;
    padding: 8px 50px;
    width: 200px;
    height: 52px;
    overflow: hidden;
  }
  DIV P {
    margin: 0px;
    font-size: 12px;
    text-align: center;
    background: white;
  }
  DIV#red {
    background: red;
  }
  DIV#green {
    margin-left: 50px;
    background: green;
  }
  DIV#blue {
    margin-left: 50px;
    border-left: 50px solid #000040;
    background: blue;
  }
  SPAN {
    border: 1px solid red;
    padding: 1px 1ex;
    background: #E0E0E0;
    cursor: pointer;
  }
  </style>

  <script type="text/javascript">
  names = [ "red", "green", "blue" ];
  function measure() {
      for (var j in names) {
          var div = document.getElementById(names[j]);
          var p = div.getElementsByTagName("p")[0];
          var style = window.getComputedStyle(p, null);
          p.textContent = style.width
      }
  }
  function set_inner_width() {
      var width = this.textContent;
      for (var j in names) {
          document.getElementById(names[j]).style.width = width;
      }
      measure();
  }
  function set_outer_width() {
      var target = parseFloat(this.textContent);
      for (var j in names) {
	  var div = document.getElementById(names[j]);
	  var style = window.getComputedStyle(div, null);
	  var lengths = [ "margin-left", "border-left-width",
			  "padding-left", "padding-right" ];
	  var sum = 0;
	  for (var i in lengths) {
	      sum += parseFloat(style.getPropertyValue(lengths[i]));
	  }
	  div.style.width = (target-sum)+"px";
      }
      measure();
  }
  function init() {
      spans = document.getElementsByClassName("button1");
      for (var i in spans) spans[i].onclick = set_inner_width;
      spans = document.getElementsByClassName("button2");
      for (var i in spans) spans[i].onclick = set_outer_width;
      measure();
  }
  </script>
</head>
<body onload="init()">
  <img src="https://m.seehuhn.de/cssgeom/scale.png">
  <div id="red"><img src="https://m.seehuhn.de/cssgeom/scale.png"><p></div>
  <div id="green"><img src="https://m.seehuhn.de/cssgeom/scale.png"><p></div>
  <div id="blue"><img src="https://m.seehuhn.de/cssgeom/scale.png"><p></div>

  <hr>

  <p>Set inner width to:
  <span class="button1">300px</span>,
  <span class="button1">400px</span>,
  <span class="button1">500px</span>
  <p>Set outer width to:
  <span class="button2">300px</span>,
  <span class="button2">400px</span>,
  <span class="button2">500px</span>
</body>
</html>

[download]

References

the Box Model chapter of the CSS2 specification
the W3C CSSOM View Module reference
Peter-Paul Koch's page about getting CSS style information and the corresponding browser compatibility tables.
